Existing Steely units
With complete selections, receive a project-specific concept rendering and preliminary cost estimate targeted for the same business day.
What you receive
A building you can see, price, review, and move forward.
Steely connects the rendering, measured drawings, preliminary estimate, steel-system data, engineer handoff, and physical package so the same project intent carries from the first conversation into production.
Fast first answers
Start with one of ours—or bring your own plan.
Timing begins when the dimensions, use, roof, openings, site, and requested scope are complete enough to review.
Custom first design review
Provide a plan, sketch, or measured idea for an initial coordinated design review, rendering direction, and estimate basis.
Engineer handoff packet
Once geometry and site criteria are confirmed, the steel scope is organized into the information needed for licensed engineering review.
These are workflow targets—not promises of an engineer's stamp, permit approval, fabrication release, or authority review. Complex structures, incomplete inputs, revisions, and local requirements can change timing.
AI design and pre-engineering
Complimentary design + representative review
Start with one measured building design and one successful AI concept. A Steely representative then reviews the measured geometry, project address, engineering scope, package options, and freight with you.
- Scaled high-resolution AI concept image
- Dimensioned architectural drawings and schedules
- Traceable OctMatrx takeoff with marked-set evidence
- VeriStruct pre-engineering packet for licensed-professional review
- Use your architect/engineer or coordinate the final path through Steely
Parts, cut lists, and internal pricing are not published online. Framing, materials, delivery, construction, permitting, and licensed engineering or stamping are included only when a written quote says so. Concept images and review-ready and pre-engineered packets are not permit approval or an engineer's stamp until the responsible licensed professional reviews and seals the project.
Your digital project packet
Useful information—not just a pretty picture.
High-resolution rendering
A realistic exterior concept tied to the selected roof family, footprint, wall heights, openings, colors, and setting.
Preliminary cost estimate
A measured early estimate based on the selected model, geometry, openings, steel basis, delivery scope, and known project information.
Dimensioned drawing set
Black-and-white floor plan, four elevations, wall and plate heights, roof pitch, X/Y/Z references, and covered-area dimensions.
Opening schedule
Door and window sizes, rough-opening widths and heights, sill and head heights, wall locations, and special large-opening notes.
Roof, soffit + fascia sheet
Roof geometry, pitch, ridge or high/low walls, all four overhangs, soffit system, fascia type, and fascia depth.
Preliminary takeoff basis
Budget framing basis, wall area, roof area, track, stud length, fasteners, cladding interface, and other supplier-quoting quantities.
Steel system data
Wall, floor, roof, opening, member, panel, header, truss, joist, bracing, and connection information developed for the selected scope.
Interactive review package
A shareable digital view of the model, selected dimensions, documents, assumptions, and outstanding decisions before release.
Example: compact concept + real production output
Walk through what the customer receives.

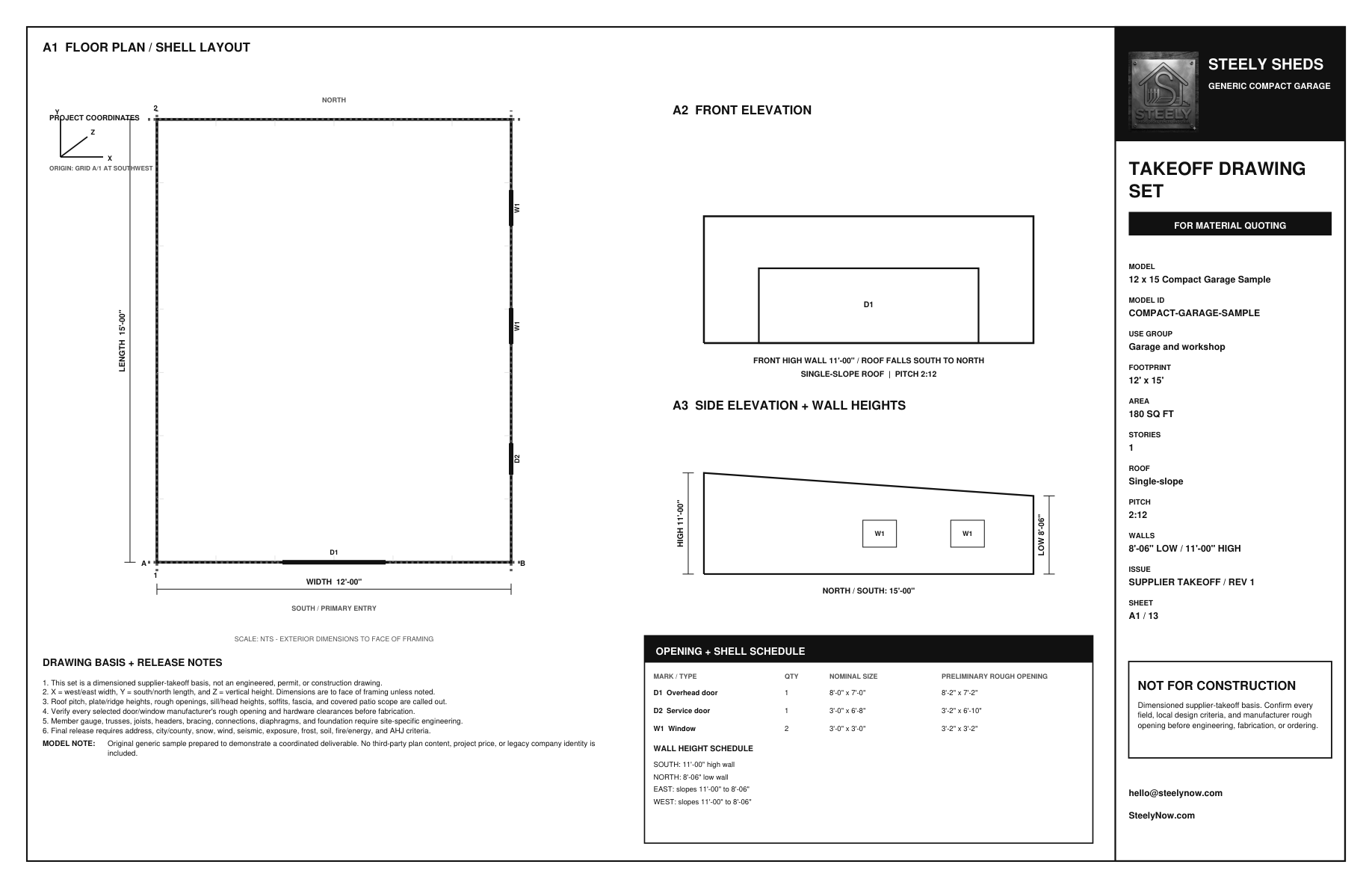

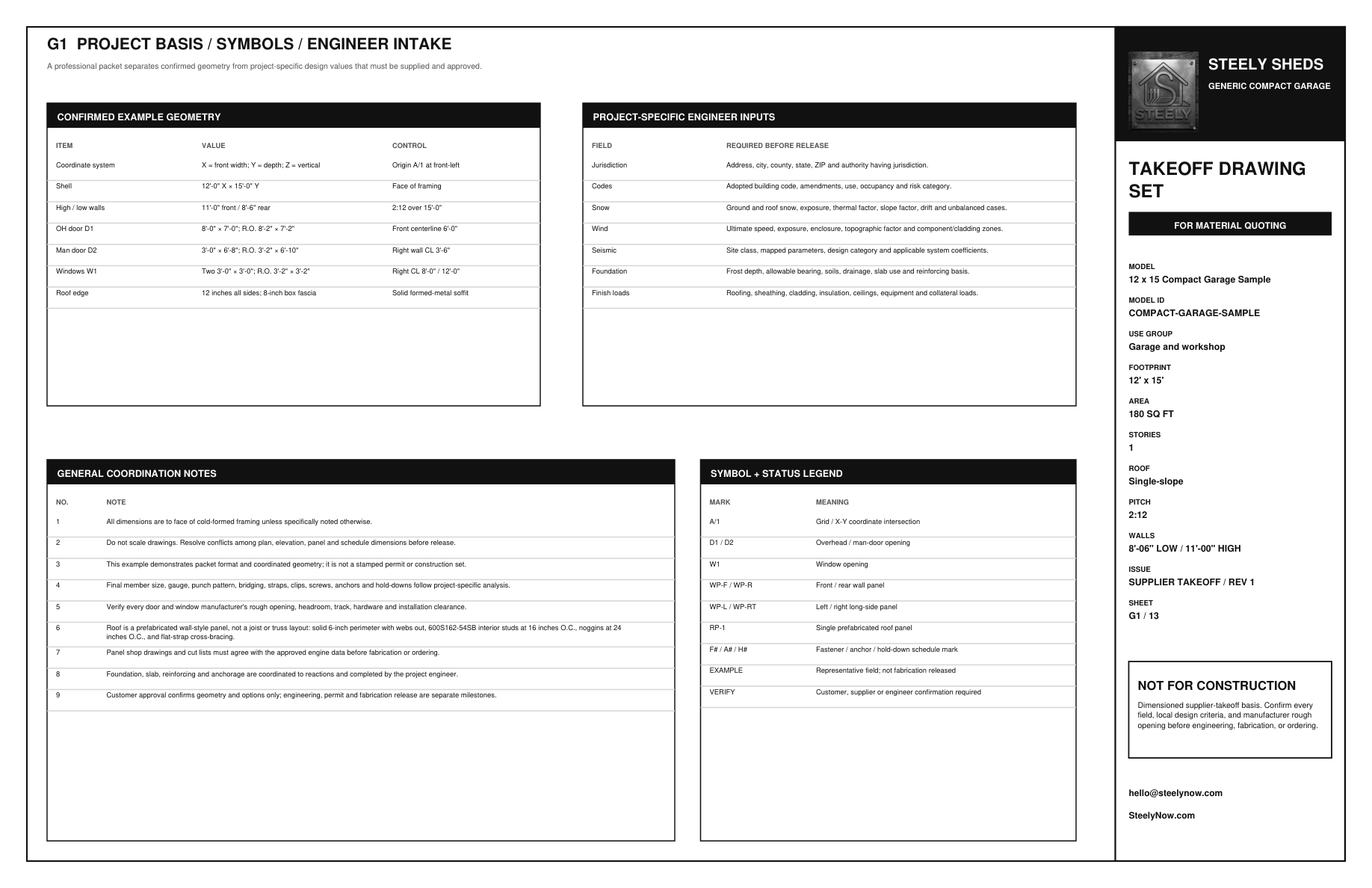

Start with a 12 × 15 compact garage concept and its coordinated five-sheet preliminary packet. Then step into an authentic full-size VeriStruct output to inspect the shop drawings, data sheets, DAT files, interactive 3D model, and assembly blueprint.
- Scaled concept rendering tied to stated geometry
- Length, width, plate, wall, and ridge heights
- Door and window nominal sizes plus rough openings
- Roof, soffit, fascia, overhang, and quantity basis
- Real production-output format shown at original dimensions
Different roof + truss families
See the right packet for the right building.
A gable garage, compact gambrel shed, and custom shop each need their own roof geometry, openings, wall heights, engineering assumptions, and matching drawing set.
Classic gable
16 × 24 two-car garage
A conventional two-slope roof and gable-truss starting point with garage-door, service-door, window, wall-height, ridge, soffit, fascia, and roof callouts.
Open matching drawing set
Compact gambrel profile
10 × 16 lofted storage shed
A compact double-slope roof with separate lower and upper pitches, useful loft volume, storage openings, and a matching profile-specific truss basis.
Open matching drawing set
Custom shop
40 × 60 large shop
A 2,400-square-foot work and storage shell with coordinated overhead openings, service doors, wall heights, roof geometry, and a matching takeoff basis. Larger custom options are available by request.
Open matching drawing setSteel engineering handoff
Organized for the project's licensed engineer.
Steely develops the coordinated cold-formed steel information for the agreed scope, then packages it so the engineer can review the actual geometry, site criteria, members, loads, openings, and connections without rebuilding the project intent from scratch.
- Confirmed plan geometry and story heights
- Project address, city, county, state, and ZIP
- Known snow, wind, seismic, exposure, drift, frost, and code criteria
- Preliminary stud, track, header, joist, truss, and panel schedules
- Opening, bearing, reaction, bracing, and connection information
- Calculation and data sheets produced for the agreed steel scope
- Drawing references and open items requiring licensed review
When the structure is steel
Steely develops the steel system data.
Our coordinated steel scope can include member, panel, truss, joist, header, bracing, connection, production, and takeoff information for licensed project review.
When the structure is wood
Take the design package to your professionals.
Steely can provide the rendering and dimensioned architectural design information, but wood structural engineering must be completed by the customer's architect or appropriately licensed engineer unless separately contracted.
After approval
Choose the physical package that fits your build.
Pre-cut member kit
Labeled studs, track, headers, truss or joist components, connection information, and coordinated assembly documents.
Panel kit

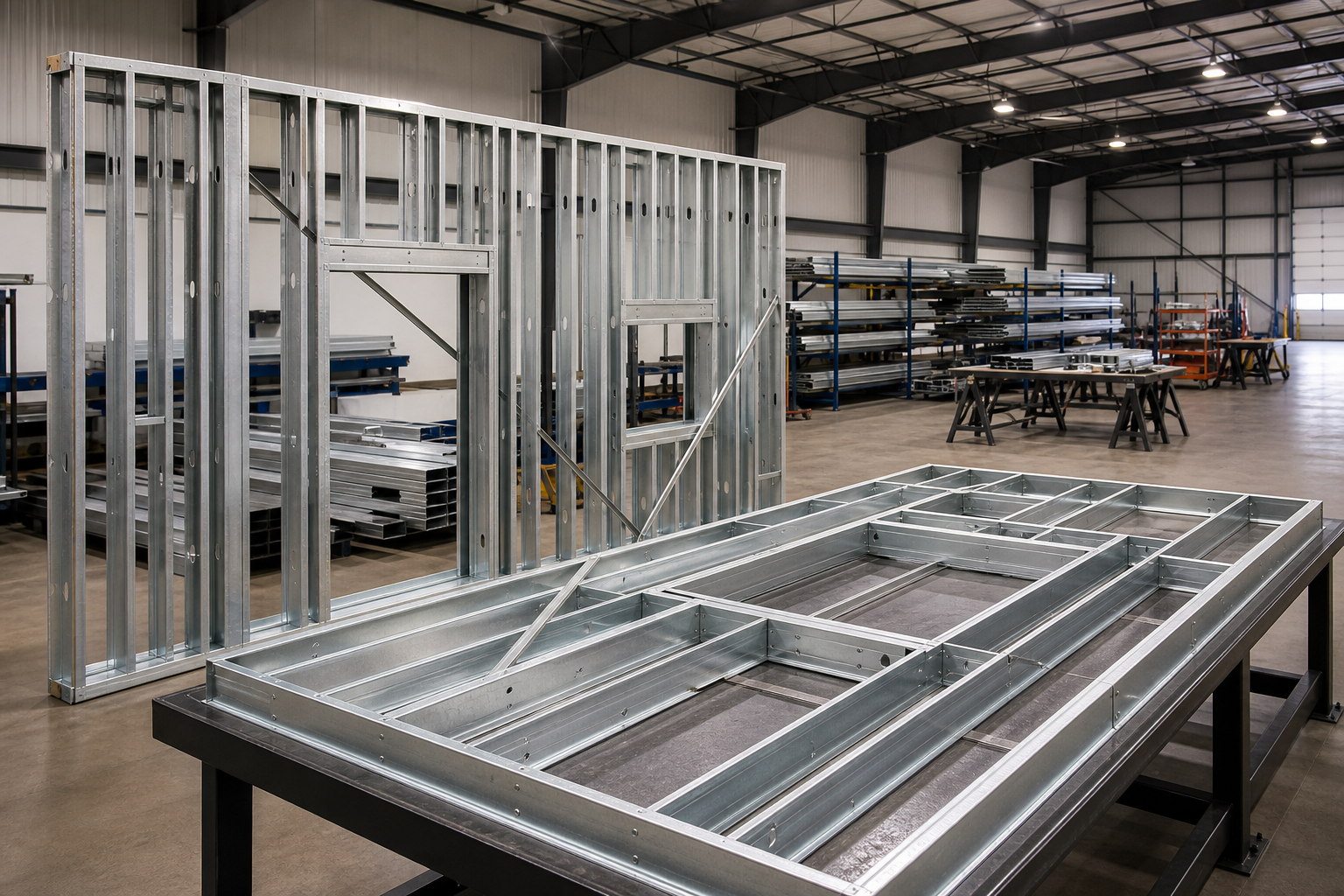

Wall, floor, and roof panels organized for the approved building, openings, sequence, delivery plan, and site assembly.
Framed or full build
Connect the approved package to qualified erection or a coordinated construction path where project location and scope align.
